American Landscape Lighting Lifestyle Expert Guide

Residential architecture across the United States has undergone a quiet spatial revolution, shifting the boundary of domestic living spaces past the interior drywall and out into the perimeter grounds. Property owners increasingly demand that exterior environments function with the same ergonomic precision, aesthetic warmth, and functional versatility as indoor living rooms. Within this broader cultural evolution, illumination plays a central structural role. It shapes how families gather on suburban patios, how suburban and rural estates frame their property lines after dusk, and how nocturnal architecture interacts with regional geography.

Yet, translating daylight architectural aspirations into nocturnal realities involves navigating a complex web of electrical, mechanical, and ecological challenges. Many homeowners and commercial property stewards approach exterior lighting through a superficial lens, assuming that off-the-shelf hardware and casual wiring will suffice. This mindset routinely results in glaring hot spots, premature hardware corrosion, and fragile sub-grade electrical grids that fail within a single seasonal cycle. Achieving an enduring outdoor aesthetic requires moving past mass-market shortcuts and embracing professional-grade engineering principles.

This reference manual provides an exhaustive architectural and tactical framework for evaluating, specifying, and sustaining high-performance residential nightscapes. The following sections dissect systemic philosophies, material constraints, and regional methodologies essential for defining the american landscape lighting lifestyle. Through careful analysis of fixture metallurgy, voltage architecture, and long-term stewardship, this guide establishes a definitive standard for exterior environmental design.

Table of Contents

Understanding american landscape lighting lifestyle

At its core, understanding the american landscape lighting lifestyle requires examining how contemporary homeowners utilize nocturnal outdoor spaces for recreation, visual expression, and perimeter security. This cultural paradigm extends domestic routines well past sunset, turning backyards, courtyards, and architectural facades into active evening living zones. However, popular discourse often reduces this lifestyle trend to simple aesthetic ornamentation or decorative holiday lighting, ignoring the underlying technical rigor required to sustain a permanent outdoor electrical infrastructure.

A common misunderstanding frames exterior illumination as an easily changeable consumer accessory, similar to indoor floor lamps. This oversimplification introduces severe risks. Subterranean moisture, shifting soils, freezing winter frost lines, and intense UV exposure constantly test the physical integrity of every component. When installers treat exterior wiring casually, minor flaws propagate rapidly. A single unsealed wire splice allows moisture to migrate via capillary action through copper strands, destroying downstream LED drivers yards away from the original entry point.

True mastery of this architectural domain demands recognizing that exterior lighting is an interconnected electrochemical ecosystem. Every choice—from transformer capacity and wire gauge to optical beam angles and housing metallurgy—determines whether an installation will endure or degrade. By analyzing these technical interdependencies, property stewards can prevent chronic maintenance failures and build resilient nightscapes that support long-term outdoor living habits.

Deep Contextual Background

The evolution of domestic exterior illumination in the United States mirrors broader shifts in architectural technology and suburban development. For generations, residential properties relied on high-voltage 120-volt floodlights bolted directly to exterior walls, casting harsh, indiscriminate glare across lawns for basic security purposes. These legacy setups demanded rigid metal conduit and deep burial trenches governed by strict municipal building codes, limiting sophisticated design to commercial properties or ultra-luxury estates.

The widespread adoption of low-voltage 12-volt and 24-volt systems transformed the domestic market by introducing safe, flexible distribution networks. Homeowners and independent contractors could suddenly route sub-grade cabling without heavy trenching equipment or mandatory electrical inspections. Unfortunately, this accessibility fostered widespread complacency. Installers began cutting corners, utilizing thin wire gauges, skipping waterproof connectors, and relying on low voltage to forgive sloppy craftsmanship.

The subsequent transition to Solid-State Lighting introduced another systemic turning point. While LEDs dramatically reduced power consumption and thermal output, they proved far more sensitive to voltage irregularities and moisture ingress than incandescent filaments. An installation error that merely caused a legacy bulb to dim slightly will frequently cause a modern LED driver to flicker, drop packets of current, or fail completely. Consequently, legacy habits that were risky under older technologies have become catastrophic under contemporary solid-state architectures.

Conceptual Frameworks and Mental Models

Designing and sustaining high-performance exterior networks requires structured mental models that govern technical execution under real-world site conditions.

The Electrochemical Corrosion Horizon

This model views every underground wire splice not as a static connection, but as an active galvanic cell. When dissimilar metals, ground moisture, and electrical current meet in acidic or alkaline soils, rapid electrolytic corrosion occurs. Installers must model how soil chemistry will interact with wire junctions over a multi-year span, treating every connection as a point of potential failure unless isolated by industrial-grade dielectric gel or heat-shrink barriers.

The Voltage Starvation Cascade

Voltage drop is not a uniform background condition; it is a cumulative tax levied on electrical current over distance and load. Installers must visualize resistance as a bottleneck. When thin wire gauges or overloaded circuits are implemented, voltage starves the terminal fixtures. This forces internal electronic components to compensate by drawing erratic current, triggering thermal runaway and shortening equipment lifespans.

The Mechanical Shear Axis

Landscape elements are dynamic, not static. Lawnmowers, string trimmers, frost heave, and root growth exert constant physical force on exterior hardware. The mechanical shear model forces installers to evaluate how a fixture stem, surface-mounted step light, or ground cable will react when struck by heavy maintenance equipment or compressed by settling soil.

The Optical Glare Boundary

Light is perceived by human eyes in relation to contrast and surrounding darkness. The optical glare model dictates that improperly aimed or unshielded fixtures do not illuminate a space effectively; instead, they cast blinding rays into lines of sight, destroying night vision and rendering architectural details invisible through excessive washout.

Key Categories and Architectural Variations

Realizing the american landscape lighting lifestyle encompasses several specialized hardware categories, each carrying unique failure modes and structural trade-offs.

Transformer Sizing and Placement

The transformer anchors the entire low-voltage network. Common errors include mounting units directly on damp masonry walls without spacers, placing them in areas prone to standing water, or overloading a single unit beyond 80 percent of its rated capacity.

  • Trade-Offs: Electronic transformers are lightweight and inexpensive but highly sensitive to voltage surges; magnetic toroidal transformers are heavy and costly upfront, but offer rugged endurance and stable power delivery.

Wire Gauge and Topology Selection

Choosing the correct cable thickness and distribution layout is vital for preventing voltage drop. Daisy-chaining too many fixtures along a single long wire run starves the terminal units of proper current.

  • Trade-Offs: Saving money by using thin 14-gauge or 16-gauge wire over extended runs introduces severe resistance; investing in heavy 10-gauge trunk lines preserves voltage integrity but increases initial material expenditure.

Sub-Grade Splice Execution

Wire connections located below ground level represent the single most frequent point of system failure. Twisting wires together and wrapping them in standard electrical tape invites immediate moisture intrusion.

  • Trade-Offs: Standard wire nuts are fast to install but offer zero environmental protection; pre-filled silicone gel wire caps or adhesive-lined heat-shrink tubing require more installation time and specialized tools, but provide permanent watertight integrity.

Fixture Housing and Optical Shielding

Selecting and positioning luminaires dictates the aesthetic and mechanical success of the project. Using unshielded floodlights in open areas creates intense glare and attracts insects.

  • Trade-Offs: Fixed-beam fixtures are cost-effective and rigid, but lack post-installation adjustment capability; adjustable zoom optics offer high versatility but contain complex mechanical joints that can loosen over time.

Architectural Comparison Table

Component Category Common Installation Blunder Immediate Consequence Long-Term Failure Mode
Transformers Overloading past 100% capacity Internal thermal tripping Permanent core burnout
Wiring Networks Implementing long daisy-chain runs Dimming at terminal fixtures Driver failure from erratic current
Sub-Grade Splices Using standard electrical tape Intermittent short circuits Complete circuit corrosion
Fixture Stems Burying cables too shallow (<4 inches) Trimmer or shovel severance Open-circuit fault in lawn grid
Optical Housings Aiming uplights directly outward Blinding glare for occupants Visual discomfort and light pollution
Mounting Spikes Forcing stakes into hard rock / clay Stem shear and structural tilt Fixture detachment and water entry

Realistic Decision Logic

When designing an exterior lighting array, installers must balance material quality against site-specific constraints. If a property features heavy, rocky clay soil, attempting to drive fragile plastic mounting stakes into the ground will result in structural shear. Installers must pivot to core-drilled or heavy cast-brass mounting bases, even if it requires adjusting the overall fixture count to stay within budget parameters.

Detailed Real-World Scenarios

Examining practical deployment environments illustrates how installation oversights cascade into major operational failures.

Case Study A: The Suburban Daisy-Chain Collapse

A residential property owner attempts a DIY landscape lighting project in a large backyard, installing twelve LED path lights and six uplights in a single continuous daisy-chain wire run originating from a 150W electronic transformer.

  • Constraints: 220-foot total wire run length; standard 14-gauge direct-burial cable; dense clay soil.

  • Decision Points: The installer chooses to loop all eighteen fixtures onto one continuous line to minimize trenching labor.

  • Failure Modes Identified: Severe voltage drop occurs by fixture number ten. Terminal fixtures drop below 9.5 volts, causing them to flicker violently.

  • Second-Order Effects: To combat the flickering, the owner replaces the 150W transformer with a larger 300W unit, ignoring the underlying resistance problem. The excessive current overloads the thin 14-gauge wire near the transformer, causing internal insulation to melt and triggering a permanent short circuit.

  • Resolution: Excavating the run, splitting the network into two separate home-run branches, and upgrading the trunk line to heavy 10-gauge stranded copper cable to stabilize voltage distribution.

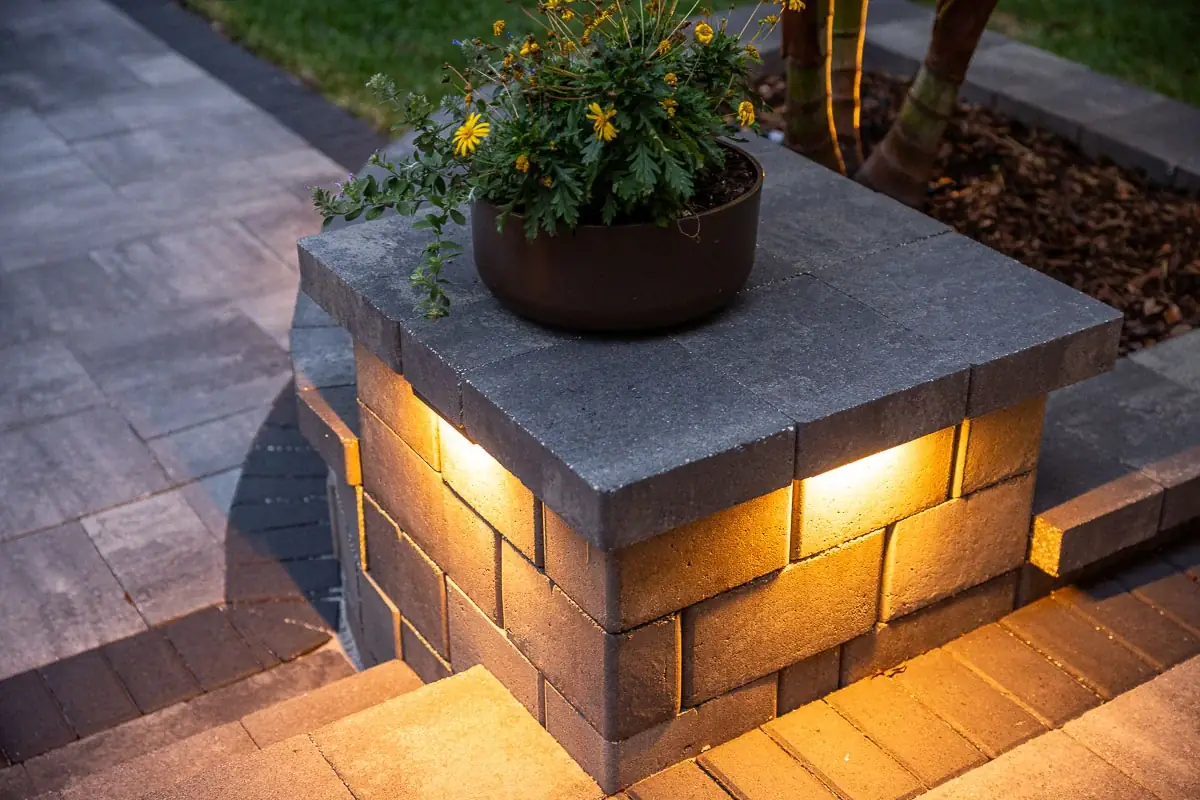

Field Incident B: The Retaining Wall Moisture Breach

A commercial landscape contractor installs hardscape step lights along a newly constructed multi-tiered stone retaining wall. To expedite the schedule, workers splice the fixture pigtails to the main line using standard indoor wire nuts wrapped in vinyl electrical tape, tucking the exposed splices directly behind the stone veneer.

  • Constraints: Strict project completion deadline; high moisture retention behind the retaining wall drainage gravel.

  • Decision Points: Contractors bypass heat-shrink waterproof enclosures to save labor time during wall stacking.

  • Failure Modes Identified: Autumn rains saturate the gravel backfill. Moisture migrates through the vinyl tape, causing electrolytic corrosion inside the wire nuts within three months.

  • Second-Order Effects: The short circuit trips the transformer’s magnetic circuit breaker every evening precisely when the photocell activates the system, shutting down entire architectural zones.

  • Resolution: Dismantling portions of the stone veneer, cutting out corroded wire segments, and reinstalling every connection inside waterproof gel-filled enclosures and elevated junction vaults.

Operational Deployment C: The Shallow Trench Hazard

A residential property owner installs a comprehensive perimeter lighting grid around an extensive garden. To avoid manual excavation fatigue, the installer presses the 12-gauge cable only an inch below the surface using a flat spade.

  • Constraints: Hard soil conditions; presence of active lawn care maintenance schedules.

  • Decision Points: Prioritizing speed of installation over proper burial depth specifications.

  • Failure Modes Identified: During the first spring aeration and weekly string-trimming maintenance, the equipment blades slice directly through the shallow cable path.

  • Second-Order Effects: The severed line disables half the perimeter lighting, and moisture entering the cut cable corrodes upstream branch connections.

  • Resolution: Re-trenching the entire network to a true depth of 6 inches, installing protective PVC conduit beneath high-traffic turf zones, and repairing damaged wire segments with heavy-duty heat-shrink splices.

Planning, Cost, and Resource Dynamics

Addressing installation errors requires understanding the economic relationship between initial material choices, labor execution, and long-term lifecycle performance.

Direct and Indirect Financial Realities

Attempting to minimize upfront material costs by purchasing uncertified transformers, thin wire, and plastic fixtures frequently incurs hidden financial penalties. When substandard components fail prematurely, the indirect labor costs of troubleshooting subterranean faults, excavating turf, and replacing corroded hardware far exceed the initial savings of the budget materials. Investing moderately in commercial-grade, serviceable hardware protects the project from recurring repair overhead.

Opportunity Cost and Resource Allocation

Labor allocation represents a major variable in exterior installation success. Spending adequate time during the initial planning phase to map voltage drop calculations, verify soil conditions, and select proper waterproof connectors prevents expensive emergency service calls later. Furthermore, staging an installation in phased zones allows installers to verify electrical stability before sealing sub-grade trenches permanently.

Financial and Resource Allocation Range Table

Project Scale Typical Upfront Capital Range Primary Installation Risk Corrective Investment Strategy
Small Residential Yard $400 – $1,000 Shallow trenching and thin wire Invest in 10-gauge trunk wire and gel splices
Medium Suburban Property $1,500 – $4,000 Transformer overload and daisy-chaining Split circuits into multi-tap home-run zones
Large Estate / Commercial $5,000 – $18,000+ Complex voltage drop and moisture ingress Centralized magnetic hubs and waterproof vaults

Tools, Strategies, and Support Systems

Preventing and rectifying installation errors requires utilizing specific diagnostic tools and professional installation methods.

1. Digital Multimeter for Voltage Verification

A basic digital multimeter is an essential diagnostic instrument. Installers must measure operational voltage directly at the lamp socket of the furthest fixture under full load to confirm that voltage sits within the optimal 10.8V to 11.6V window for 12V LED systems, preventing driver degradation.

2. Direct-Burial Gel-Filled Enclosures

Eliminating moisture corrosion requires abandoning standard electrical tape. Installers must utilize industrial-grade, pre-filled silicone gel wire nuts or dual-wall adhesive heat-shrink tubing that melts around the copper strands to create a hermetic seal against soil moisture.

3. Multi-Tap Magnetic Transformers

When designing circuits with extended wire runs, selecting a transformer equipped with multi-tap voltage outputs (such as 13V, 14V, and 15V taps) allows installers to boost output voltage at the source, effectively overcoming voltage drop without requiring additional power units.

4. Heavy-Duty Trenching Mattocks and Edgers

Avoiding shallow cable placement requires proper excavation tools. Utilizing manual half-moon edgers or structural mattocks allows clean, narrow sub-grade cuts to a secure depth of 6 inches without disrupting surrounding root systems or damaging turf stability.

5. Glare Shields and Snoots

Mitigating optical installation errors involves controlling light spill. Attaching metal glare shields, louvers, or honeycomb snoots to accent spotlights redirects stray photons away from viewer lines of sight, preserving environmental contrast and dark skies.

6. Phase-Balanced Home-Run Topologies

Replacing fragile daisy-chain layouts with a star or home-run wiring topology—where multiple independent wire branches run directly from the transformer terminals—ensures balanced electrical resistance and simplifies future troubleshooting.

Risk Landscape and Failure Modes

Ignoring installation fundamentals introduces compounding operational risks that threaten system integrity across multiple vectors.

Thermal Overload and Driver Degradation

When wire resistance or transformer overloading forces LED drivers to operate outside their specified voltage tolerances, internal thermal stress spikes. This accelerates component degradation, causing intermittent flashing, color shifting, and catastrophic driver burnout.

Electrolytic Soil Corrosion and Short Circuits

Sub-grade moisture intrusion combined with DC or AC electrical current creates rapid galvanic corrosion in poorly sealed splices. This failure mode creates intermittent ground faults that trip transformer breakers and force extensive exploratory excavation across established landscaping.

Mechanical Shear and Structural Collapse

Installing fixtures with fragile plastic stakes in high-traffic zones or failing to secure hardscape lights with structural adhesive leaves the hardware vulnerable to lawn maintenance equipment and shifting soil, leading to fixture detachment and water entry.

Governance, Maintenance, and Long-Term Adaptation

Maintaining an error-free exterior lighting network requires disciplined operational habits and regular inspection protocols to safeguard initial capital investments.

  • Quarterly Electrical Audits: Measure terminal voltages and check transformer circuit breakers every three months to catch developing voltage drop or overload conditions before hardware failure occurs.

  • Environmental Clearing Protocols: Inspect fixture housings and clear encroaching mulch, ground cover, and soil buildup away from optical lenses and ventilation fins semi-annually to prevent heat trapping and light obstruction.

  • Layered Maintenance Checklist:

    • Verify photocell sensor alignment and cleanliness to ensure precise automated switching schedules.

    • Inspect sub-grade junction vaults for standing water or moisture accumulation.

    • Check mounting stem stability and retighten ground stakes or structural fasteners loosened by frost heave.

    • Examine exposed cable sections for UV degradation, animal chewing, or mechanical wear from garden tools.

Measurement, Tracking, and Evaluation

Assessing the ongoing performance of an exterior lighting installation involves monitoring both electrical efficiency metrics and physical condition indicators.

Leading and Lagging Indicators

Leading indicators include stable multi-tap voltage readings at terminal sockets, clean optical output without flicker, and completely dry interior gel splices during seasonal audits. Lagging indicators reflect past installation errors, such as frequent transformer breaker trips, cracked fixture stems, and recurring repair labor hours.

Common Misconceptions and Oversimplifications

1. Low-voltage systems do not require professional wiring care.

Although low-voltage setups carry minimal electrocution risk, ignoring proper wire splicing, gauge selection, and burial depth leads directly to rapid corrosion, voltage drop, and chronic system failure.

2. Daisy-chaining fixtures is an efficient wiring method for large yards.

Running a single continuous wire through dozens of fixtures causes severe voltage starvation at the end of the line, resulting in dim output and unbalanced electrical loads.

3. Standard electrical tape provides adequate underground waterproofing.

Vinyl electrical tape degrades rapidly when exposed to soil moisture and microbes, inviting electrolytic corrosion and short circuits within months of installation.

4. Transformers can be safely loaded to their maximum wattage limit.

Operating a power unit at 100 percent capacity accelerates internal core heating and shortening transformer lifespan; units should be loaded to a maximum of 80 percent capacity.

5. Burying cables shallowly saves time without consequence.

Placing cables less than 4 inches deep exposes the network to frequent severance from routine lawn aeration, string trimming, and gardening tools.

6. Any LED fixture can work with any existing transformer.

Mixing incompatible AC and DC components or pairing sensitive electronic drivers with unregulated magnetic transformers without checking load compatibility causes severe flickering and premature burnout.

Ethical, Practical, and Contextual Considerations

Designing and installing exterior illumination involves balancing aesthetic goals with environmental responsibility and community impact. Common installation errors—such as unshielded uplighting and excessive fixture counts—contribute significantly to light pollution, casting unmanaged glare into neighboring properties and disrupting nocturnal wildlife habitats. By executing installations with rigorous restraint, utilizing precision optical shielding, and preventing electrical waste, property stewards minimize light trespass, reduce electronic hardware disposal, and achieve a respectful integration with the nighttime environment.

Conclusion

Mastering the technical and architectural foundations of the american landscape lighting lifestyle is an exercise in disciplined engineering, material respect, and meticulous physical execution. Cutting corners on wire gauges, sub-grade splices, and transformer capacities inevitably produces a compounding cycle of failure, repair labor, and wasted capital.
