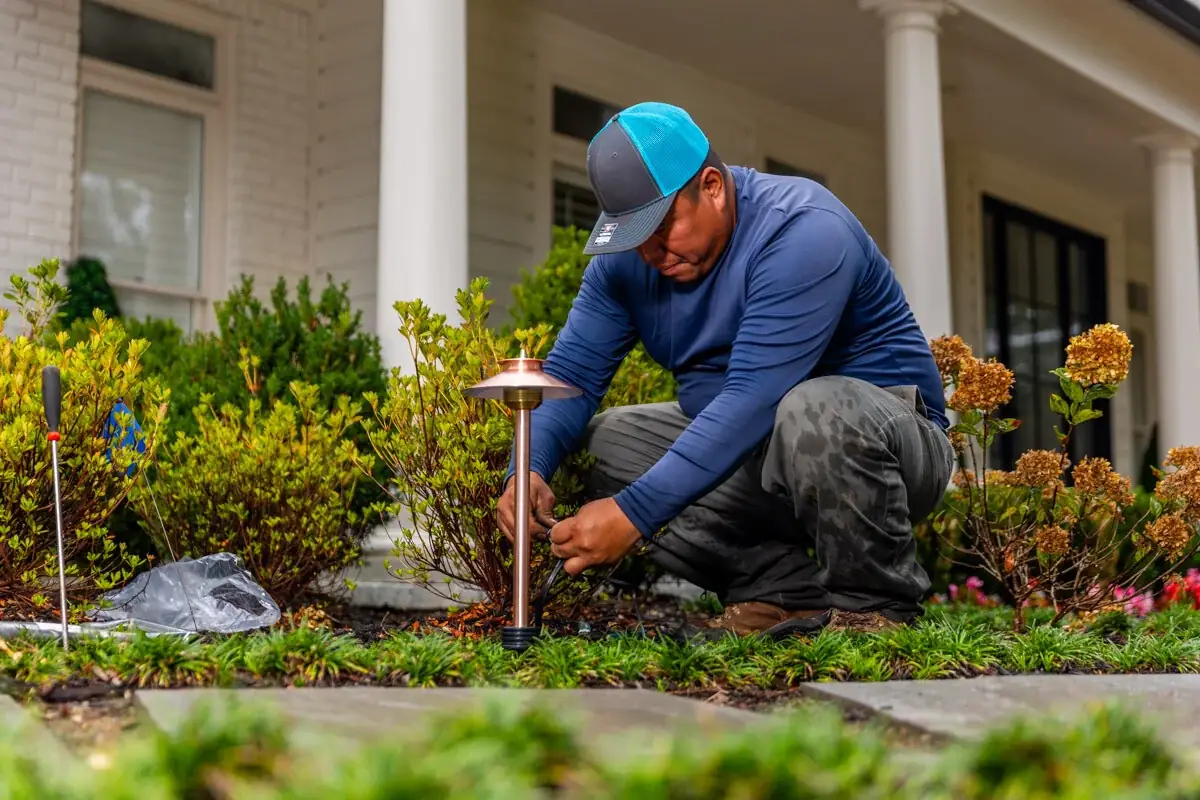

Common Landscape Lighting Installation Mistakes Expert Guide

Exterior illumination transforms residential and commercial environments after dark, extending outdoor usability, elevating architectural presence, and reinforcing perimeter security. However, realizing a sophisticated nocturnal landscape frequently collides with structural and electrical oversights. Property owners and installers often approach outdoor lighting as a straightforward plug-and-play exercise, underestimating the complex interactions between voltage drop, soil chemistry, optical physics, and environmental weathering. This perspective creates a high failure rate, leading many systems to suffer from premature hardware corrosion, blinding glare, or total circuit collapse within a single seasonal cycle.

Technical blunders rarely stem from a single careless action; instead, they emerge from systemic miscalculations during the planning and execution phases. Navigating exterior electrical networks requires distinguishing between cosmetic design choices and non-negotiable engineering principles. When installers ignore load limits, select improper wire gauges, or fail to protect sub-grade connections from moisture, they inherit a compounding cascade of maintenance headaches. By examining structural vulnerabilities and systemic flaws, property stewards can prevent chronic failures and construct durable, visually balanced nightscapes.

This guide provides an exhaustive architectural and tactical framework for identifying and correcting structural errors in exterior illumination. The following sections dissect the systemic roots, material trade-offs, and design methodologies essential for recognizing and avoiding common landscape lighting installation mistakes. Through careful analysis of system topology, load calculations, and environmental resilience, this reference establishes a roadmap for achieving professional-grade reliability through disciplined execution.

Table of Contents

Understanding common landscape lighting installation mistakes

At its core, understanding common landscape lighting installation mistakes involves analyzing where human error, material mismatch, and electrical physics intersect to compromise system longevity. Many property owners approach installation through a surface-level lens, treating exterior fixtures like indoor lamps that merely require a plug and a socket. This fundamental oversimplification ignores the harsh realities of the subterranean environment, where shifting soil, ground moisture, landscaping equipment, and thermal fluctuations constantly test the integrity of every component.

A sophisticated interpretation treats an exterior lighting array as an interconnected electrochemical ecosystem. When an installer makes an error at the transformer terminal or selects an unsealed wire connector, the mistake does not remain localized; it propagates through the entire circuit. Moisture migration travels via capillary action inside copper strands, eventually destroying internal LED drivers yards away from the original point of entry. Furthermore, failing to account for voltage drop across extended wire runs creates chronic under-voltage conditions that force sensitive solid-state components to draw erratic current, accelerating thermal wear.

Public discourse frequently focuses on aesthetic choices—such as beam angles and color temperatures—while ignoring foundational physical errors. Yet, the most damaging blunders happen below the surface or inside the electrical housing before the light ever turns on. True mastery of outdoor lighting requires cataloging these hidden vulnerabilities, recognizing how minor shortcuts compound over time, and establishing rigorous installation protocols that protect the system from environmental aggression.

Deep Contextual Background

The historical trajectory of exterior illumination explains much of current installation behavior. For decades, residential and commercial landscape design relied on high-voltage 120-volt systems or short-lived low-voltage incandescent bulbs. These legacy setups demanded rigid conduit, deep trenching below local frost lines, and heavy-duty mechanical connections. Because mistakes in 120-volt systems carried severe safety hazards, installations were largely restricted to licensed electricians who adhered to strict municipal codes.

The widespread adoption of 12-volt and 24-volt low-voltage systems via magnetic step-down transformers democratized exterior design. By reducing shock hazards and relaxing deep burial requirements, low-voltage networks enabled property owners and landscape contractors to execute installations independently. However, this accessibility created an unintended consequence: a widespread erosion of rigorous electrical standards. Without mandatory code inspections for low-voltage sub-grade wiring, installers began adopting casual shortcuts, such as twisting wires together without solder or waterproof sealants, relying on the low voltage to forgive sloppy craftsmanship.

The contemporary transition to Solid-State Lighting introduced a new paradigm of electrical behavior. While LEDs dramatically reduced overall power consumption and thermal output, they proved far more sensitive to voltage irregularities, current spikes, and moisture ingress than incandescent filaments. An installation error that merely caused a halogen bulb to dim slightly will frequently cause an LED driver to flicker, drop packets of current, or burn out completely. Consequently, legacy habits that were risky under older technologies have become catastrophic under modern solid-state architectures.

Conceptual Frameworks and Mental Models

Preventing installation errors requires structured mental models that govern technical execution under real-world site conditions.

The Electrochemical Corrosion Horizon

This model views every underground wire splice not as a static connection, but as an active galvanic cell. When dissimilar metals, moisture, and electrical current meet in acidic or alkaline soils, rapid electrolytic corrosion occurs. Installers must model how soil chemistry will interact with wire nuts over a five-to-ten-year span, treating every junction as a point of potential failure unless isolated by industrial-grade dielectric gel or heat-shrink barriers.

The Voltage Starvation Cascade

Voltage drop is not a uniform background condition; it is a cumulative tax levied on electrical current over distance and load. Installers must visualize resistance as a bottleneck. When thin wire gauges or overloaded circuits are implemented, voltage starves the downstream fixtures. This forces internal electronic components to compensate by drawing higher amperage, triggering thermal runaway and shortening equipment lifespans.

The Mechanical Shear Axis

Landscape elements are dynamic, not static. Lawnmowers, string trimmers, frost heave, and root growth exert constant physical force on exterior hardware. The mechanical shear model forces installers to evaluate how a fixture stem, surface-mounted step light, or ground cable will react when struck by heavy landscape maintenance equipment or compressed by settling soil.

The Optical Glare Boundary

Light is perceived by human eyes in relation to contrast and surrounding darkness. The optical glare model dictates that improperly aimed or unshielded fixtures do not illuminate a space effectively; instead, they cast blinding rays into lines of sight, destroying night vision and rendering architectural details invisible through excessive washout.

Key Categories and Architectural Variations

Installation errors manifest across several distinct hardware categories, each carrying unique failure modes and structural vulnerabilities.

Transformer Sizing and Placement

The transformer acts as the anchor of the entire low-voltage network. Common errors include mounting units directly on damp masonry walls without spacers, placing them in areas prone to standing water, or overloading a single transformer beyond 80 percent of its rated capacity.

Trade-Offs: Electronic transformers are lightweight and inexpensive but highly sensitive to voltage surges and incompatible with many mechanical timers; magnetic toroidal transformers are heavy and costly upfront, but offer rugged endurance and stable power delivery.

Wire Gauge and Topology Selection

Choosing the correct cable thickness and distribution layout is vital for preventing voltage drop. Daisy-chaining too many fixtures along a single long wire run starves the terminal units of proper current.

Trade-Offs: Saving money by using thin 14-gauge or 16-gauge wire over extended runs introduces severe resistance; investing in heavy 10-gauge or 8-gauge trunk lines preserves voltage integrity but increases initial material expenditure.

Sub-Grade Splice Execution

Wire connections located below ground level represent the single most frequent point of system failure. Twisting wires together and wrapping them in standard electrical tape invites immediate moisture intrusion.

Trade-Offs: Standard wire nuts are fast to install but offer zero environmental protection; pre-filled silicone gel wire caps or adhesive-lined heat-shrink tubing require more installation time and specialized tools, but provide permanent watertight integrity.

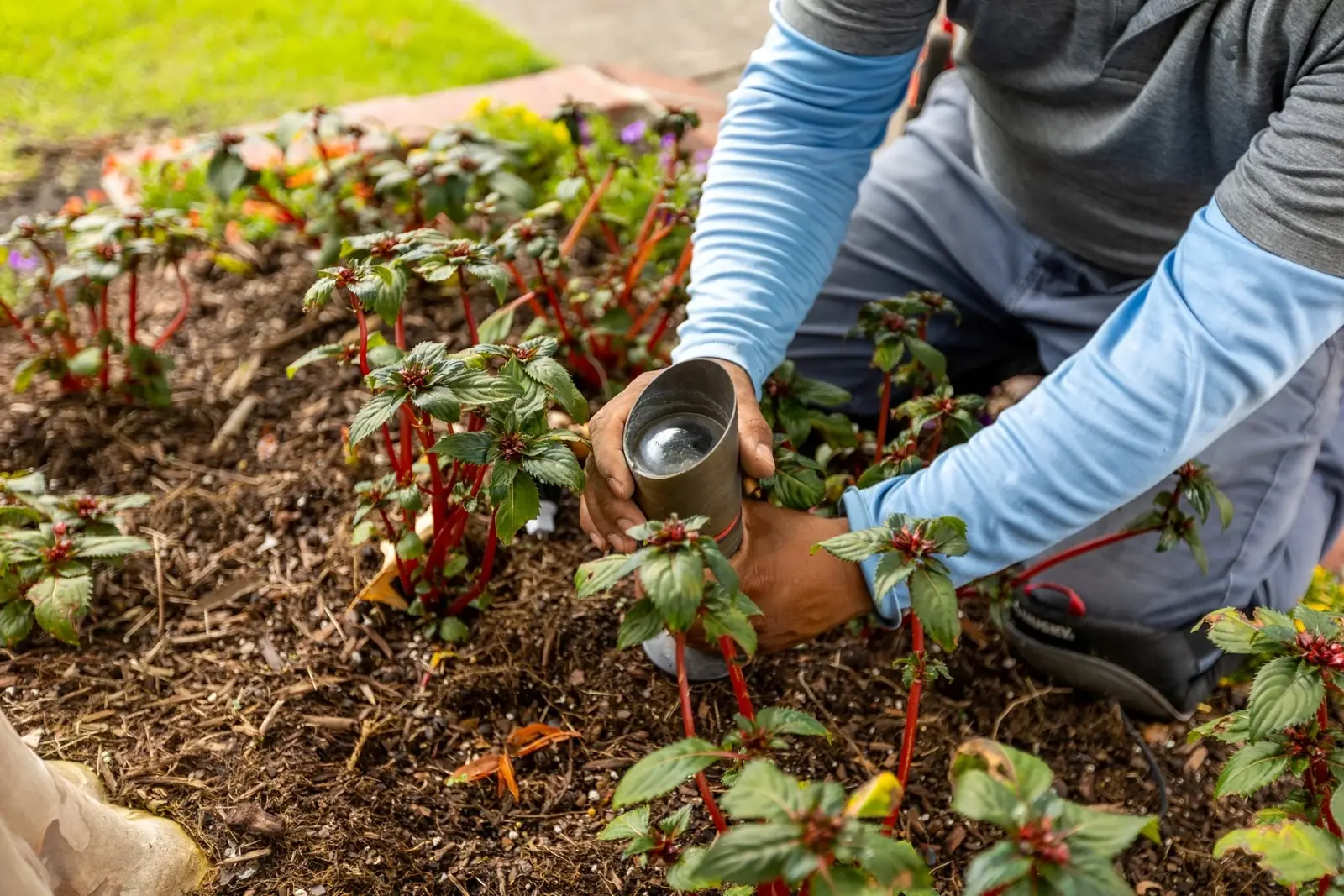

Fixture Housing and Optical Shielding

Selecting and positioning luminaires dictates the aesthetic and mechanical success of the project. Using unshielded floodlights in open lawn areas creates intense glare and attracts insects.

Trade-Offs: Fixed-beam fixtures are cost-effective and rigid, but lack post-installation adjustment capability; adjustable zoom optics offer high versatility but contain complex mechanical joints that can loosen or leak over time.

Architectural Comparison Table

Component Category	Common Installation Blunder	Immediate Consequence	Long-Term Failure Mode
Transformers	Overloading past 100% capacity	Internal thermal tripping	Permanent core burnout
Wiring Networks	Implementing long daisy-chain runs	Dimming at terminal fixtures	Driver failure from erratic current
Sub-Grade Splices	Using standard electrical tape	Intermittent short circuits	Complete circuit corrosion
Fixture Stems	Burying cables too shallow (<4 inches)	Trimmer or shovel severance	Open-circuit fault in lawn grid
Optical Housings	Aiming uplights directly outward	Blinding glare for occupants	Visual discomfort and light pollution
Mounting Spikes	Forcing stakes into hard rock / clay	Stem shear and structural tilt	Fixture detachment and water entry

Realistic Decision Logic

When designing an exterior lighting array, installers must balance material quality against site-specific constraints. If a property features heavy, rocky clay soil, attempting to drive fragile plastic mounting stakes into the ground will result in structural shear. Installers must pivot to core-drilled or heavy cast-brass mounting bases, even if it requires adjusting the overall fixture count to stay within budget parameters.

Detailed Real-World Scenarios

Examining practical deployment environments illustrates how installation oversights cascade into major operational failures.

Case Study A: The Suburban Daisy-Chain Collapse

A residential property owner attempts a DIY landscape lighting project in a large backyard, installing twelve LED path lights and six uplights in a single continuous daisy-chain wire run originating from a 150W electronic transformer.

Constraints: 220-foot total wire run length; standard 14-gauge direct-burial cable; dense clay soil.
Decision Points: The installer chooses to loop all eighteen fixtures onto one continuous line to minimize trenching labor.
Failure Modes Identified: Severe voltage drop occurs by fixture number ten. Terminal fixtures drop below 9.5 volts, causing them to flicker violently.
Second-Order Effects: To combat the flickering, the owner replaces the 150W transformer with a larger 300W unit, ignoring the underlying resistance problem. The excessive current overloads the thin 14-gauge wire near the transformer, causing internal insulation to melt and triggering a permanent short circuit.
Resolution: Excavating the run, splitting the network into two separate home-run branches, and upgrading the trunk line to heavy 10-gauge stranded copper cable to stabilize voltage distribution.

Field Incident B: The Retaining Wall Moisture Breach

A commercial landscape contractor installs hardscape step lights along a newly constructed multi-tiered stone retaining wall. To expedite the schedule, workers splice the fixture pigtails to the main line using standard indoor wire nuts wrapped in vinyl electrical tape, tucking the exposed splices directly behind the stone veneer.

Constraints: Strict project completion deadline; high moisture retention behind the retaining wall drainage gravel.
Decision Points: Contractors bypass heat-shrink waterproof enclosures to save labor time during wall stacking.
Failure Modes Identified: Autumn rains saturate the gravel backfill. Moisture migrates through the vinyl tape, causing electrolytic corrosion inside the wire nuts within three months.
Second-Order Effects: The short circuit trips the transformer’s magnetic circuit breaker every evening precisely when the photocell activates the system, shutting down entire architectural zones.
Resolution: Dismantling portions of the stone veneer, cutting out corroded wire segments, and reinstalling every connection inside waterproof gel-filled enclosures and elevated junction vaults.

Operational Deployment C: The Shallow Trench Hazard

A residential property owner installs a comprehensive perimeter lighting grid around an extensive garden. To avoid manual excavation fatigue, the installer presses the 12-gauge cable only an inch below the surface using a flat spade.

Constraints: Hard soil conditions; presence of active lawn care maintenance schedules.
Decision Points: Prioritizing speed of installation over proper burial depth specifications.
Failure Modes Identified: During the first spring aeration and weekly string-trimming maintenance, the equipment blades slice directly through the shallow cable path.
Second-Order Effects: The severed line disables half the perimeter lighting, and moisture entering the cut cable corrodes upstream branch connections.
Resolution: Re-trenching the entire network to a true depth of 6 inches, installing protective PVC conduit beneath high-traffic turf zones, and repairing damaged wire segments with heavy-duty heat-shrink splices.

Planning, Cost, and Resource Dynamics

Addressing installation errors requires understanding the economic relationship between initial material choices, labor execution, and long-term lifecycle performance.

Direct and Indirect Financial Realities

Attempting to minimize upfront material costs by purchasing uncertified transformers, thin wire, and plastic fixtures frequently incurs hidden financial penalties. When substandard components fail prematurely, the indirect labor costs of troubleshooting subterranean faults, excavating turf, and replacing corroded hardware far exceed the initial savings of the budget materials. Investing moderately in commercial-grade, serviceable hardware protects the project from recurring repair overhead.

Opportunity Cost and Resource Allocation

Labor allocation represents a major variable in exterior installation success. Spending adequate time during the initial planning phase to map voltage drop calculations, verify soil conditions, and select proper waterproof connectors prevents expensive emergency service calls later. Furthermore, staging an installation in phased zones allows installers to verify electrical stability before sealing sub-grade trenches permanently.

Financial and Resource Allocation Range Table

Project Scale	Typical Upfront Capital Range	Primary Installation Risk	Corrective Investment Strategy
Small Residential Yard	Low ($400 – $1,000)	Shallow trenching and thin wire	Invest in 10-gauge trunk wire and gel splices
Medium Suburban Property	$1,500 – $4,000	Transformer overload and daisy-chaining	Split circuits into multi-tap home-run zones
Large Estate / Commercial	$5,000 – $18,000+	Complex voltage drop and moisture ingress	Centralized magnetic hubs and waterproof vaults

Tools, Strategies, and Support Systems

Preventing and rectifying installation errors requires utilizing specific diagnostic tools and professional installation methods.

1. Digital Multimeter for Voltage Verification

A basic digital multimeter is an essential diagnostic instrument. Installers must measure operational voltage directly at the lamp socket of the furthest fixture under full load to confirm that voltage sits within the optimal 10.8V to 11.6V window for 12V LED systems, preventing driver degradation.

2. Direct-Burial Gel-Filled Enclosures

Eliminating moisture corrosion requires abandoning standard electrical tape. Installers must utilize industrial-grade, pre-filled silicone gel wire nuts or dual-wall adhesive heat-shrink tubing that melts around the copper strands to create a hermetic seal against soil moisture.

3. Multi-Tap Magnetic Transformers

When designing circuits with extended wire runs, selecting a transformer equipped with multi-tap voltage outputs (such as 13V, 14V, and 15V taps) allows installers to boost output voltage at the source, effectively overcoming voltage drop without requiring additional power units.

4. Heavy-Duty Trenching Mattocks and Edgers

Avoiding shallow cable placement requires proper excavation tools. Utilizing manual half-moon edgers or structural mattocks allows clean, narrow sub-grade cuts to a secure depth of 6 inches without disrupting surrounding root systems or damaging turf stability.

5. Glare Shields and Snoots

Mitigating optical installation errors involves controlling light spill. Attaching metal glare shields, louvers, or honeycomb snoots to accent spotlights redirects stray photons away from viewer lines of sight, preserving environmental contrast and dark skies.

6. Phase-Balanced Home-Run Topologies

Replacing fragile daisy-chain layouts with a star or home-run wiring topology—where multiple independent wire branches run directly from the transformer terminals—ensures balanced electrical resistance and simplifies future troubleshooting.

Risk Landscape and Failure Modes

Ignoring installation fundamentals introduces compounding operational risks that threaten system integrity across multiple vectors.

Thermal Overload and Driver Degradation

When wire resistance or transformer overloading forces LED drivers to operate outside their specified voltage tolerances, internal thermal stress spikes. This accelerates component degradation, causing intermittent flashing, color shifting, and catastrophic driver burnout.

Electrolytic Soil Corrosion and Short Circuits

Sub-grade moisture intrusion combined with DC or AC electrical current creates rapid galvanic corrosion in poorly sealed splices. This failure mode creates intermittent ground faults that trip transformer breakers and force extensive exploratory excavation across established landscaping.

Mechanical Shear and Structural Collapse

Installing fixtures with fragile plastic stakes in high-traffic zones or failing to secure hardscape lights with structural adhesive leaves the hardware vulnerable to lawn maintenance equipment and shifting soil, leading to fixture detachment and water entry.

Governance, Maintenance, and Long-Term Adaptation

Maintaining an error-free exterior lighting network requires disciplined operational habits and regular inspection protocols to safeguard initial capital investments.

Quarterly Electrical Audits: Measure terminal voltages and check transformer circuit breakers every three months to catch developing voltage drop or overload conditions before hardware failure occurs.
Environmental Clearing Protocols: Inspect fixture housings and clear encroaching mulch, ground cover, and soil buildup away from optical lenses and ventilation fins semi-annually to prevent heat trapping and light obstruction.
Layered Maintenance Checklist:
- Verify photocell sensor alignment and cleanliness to ensure precise automated switching schedules.
- Inspect sub-grade junction vaults for standing water or moisture accumulation.
- Check mounting stem stability and retighten ground stakes or structural fasteners loosened by frost heave.
- Examine exposed cable sections for UV degradation, animal chewing, or mechanical wear from garden tools.

Measurement, Tracking, and Evaluation

Assessing the ongoing performance of an exterior lighting installation involves monitoring both electrical efficiency metrics and physical condition indicators.

Leading and Lagging Indicators

Leading indicators include stable multi-tap voltage readings at terminal sockets, clean optical output without flicker, and completely dry interior gel splices during seasonal audits. Lagging indicators reflect past installation errors, such as frequent transformer breaker trips, cracked fixture stems, and recurring repair labor hours.

1: System Commissioning Audit Log

Zone: North Perimeter Accent Tier
Transformer Tap Setting: 13V Tap / Measured End-Voltage: 11.4V (Optimal)
Wiring Topology: Home-Run Star Configuration / 10-Gauge Copper
Splice Protection: Dual-Wall Heat-Shrink Adhesive Tubing
Lead Technician: R.K. / Date: 2026-05-12

2: Fault Isolation Review Log

Zone: Main Entrance Path Circuit
Observed Anomaly: Intermittent flickering on Fixture #6.
Root Cause Analysis: Water infiltration inside substandard wire nut due to missing gel sealant during original installation.
Corrective Action: Excision of corroded wire segment, installation of a gel-filled enclosure, and re-testing of branch continuity.
Technician: M.L. / Date: 2026-08-19

3: Maintenance Inspection Record

Zone: Poolside Hardscape Wall
Observed Condition: Trimmer nick on surface wire path; insulation compromised.
Corrective Action: Replaced damaged cable section, routed line inside protective PVC conduit behind stone coping, and sealed junction box.
Inspector: R.K. / Date: 2026-10-04

Common Misconceptions and Oversimplifications

1. Low-voltage systems do not require professional wiring care.

Although low-voltage setups carry minimal electrocution risk, ignoring proper wire splicing, gauge selection, and burial depth leads directly to rapid corrosion, voltage drop, and chronic system failure.

2. Daisy-chaining fixtures is an efficient wiring method for large yards.

Running a single continuous wire through dozens of fixtures causes severe voltage starvation at the end of the line, resulting in dim output and unbalanced electrical loads.

3. Standard electrical tape provides adequate underground waterproofing.

Vinyl electrical tape degrades rapidly when exposed to soil moisture and microbes, inviting electrolytic corrosion and short circuits within months of installation.

4. Transformers can be safely loaded to their maximum wattage limit.

Operating a power unit at 100 percent capacity accelerates internal core heating and shortening transformer lifespan; units should be loaded to a maximum of 80 percent capacity.

5. Burying cables shallowly saves time without consequence.

Placing cables less than 4 inches deep exposes the network to frequent severance from routine lawn aeration, string trimming, and gardening tools.

6. Any LED fixture can work with any existing transformer.

Mixing incompatible AC and DC components or pairing sensitive electronic drivers with unregulated magnetic transformers without checking load compatibility causes severe flickering and premature burnout.

Ethical, Practical, and Contextual Considerations

Designing and installing exterior illumination involves balancing aesthetic goals with environmental responsibility and community impact. Common installation errors—such as unshielded uplighting and excessive fixture counts—contribute significantly to light pollution, casting unmanaged glare into neighboring properties and disrupting nocturnal wildlife habitats. By executing installations with rigorous restraint, utilizing precision optical shielding, and preventing electrical waste, property stewards minimize light trespass, reduce electronic hardware disposal, and achieve a respectful integration with the nighttime environment.

Conclusion

Mastering the prevention of common landscape lighting installation mistakes is an exercise in disciplined engineering, material respect, and meticulous physical execution. Cutting corners on wire gauges, sub-grade splices, and transformer capacities inevitably produces a compounding cycle of failure, repair labor, and wasted capital. By prioritizing robust electrical infrastructure, verifying voltage drop calculations, utilizing professional waterproof enclosures, and maintaining proper burial depths, installers build enduring, reliable illumination networks. Careful planning and flawless execution transform potential failure points into an asset, resulting in a secure, balanced, and enduring nightscape.
